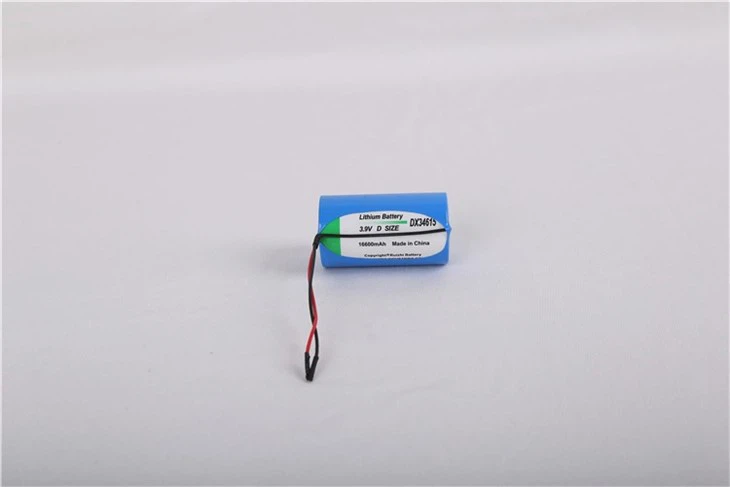

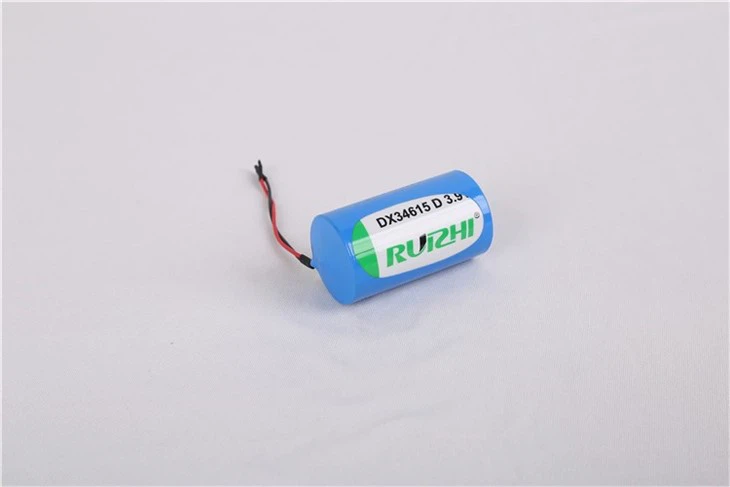

3.9V Lithium Battery DX34615
Model: DX34615
Nominal voltage: 3.9V
Nominal capacity: 16600mAh
Max.continuous current: 300mA
Max. pulse current: 600mA
Description
3.9V lithium battery DX34615 is designed to provide higher power output in a compact size, so its high energy density makes it an ideal power supply solution for high power devices. Compared with other types of batteries, it has a longer service life and a capacity of up to 16600mAh, so it can support high-power devices for a longer period of time. This battery features a unique stainless steel battery case, making it less leak and corrosion resistant. This means that there will be no accidents such as explosion and leakage during use, which can bring a more reliable use experience. In addition, this battery is very environmentally friendly because it uses lithium sulfonyl chloride as an electrolyte material that does not contain heavy metals such as mercury and cadmium. If you are looking for a powerful and reliable battery for your device, this product is the perfect solution.
Electrical Characteristics
Model | DX34615 |
Nominal voltage | 3.9V |
Nominal capacity | 16600mAh |
Max.continuous current | 300mA |
Max. pulse current | 600mA |
Operating temperature range | -60℃~+85℃ |
Weight | Approx. 107g |
Storage temperature | Max. 30℃ |
Shape | D |
Dimension(max.) | 34.0*61.5mm(Diameter*Height) |
Electrolyte/Chemistry | lithium sulfuryl chloride(Li-SO2Cl2) |
Brand | Ruizhi, Beleader, OEM acceptable |
Equivalent | SC-D01; BCX85 ; 3B0075; |
Key Features
1. The working voltage of this battery can reach 3.9V, and based on advanced technology, its voltage is very stable, which is very important for security equipment, telemetry equipment, military equipment.
2. The self-discharge rate of this 3.9V Lithium Battery DX34615 is <1% when stored at +25°C for one year, which means that it can still maintain sufficient power even if it is not used for a long time.
3. This battery is suitable for operation at low current levels and provides long-term intermittent discharge at medium current levels, with an average value not lower than the effective current level.
4. This battery is easy to install because it is designed with connection terminals, which makes it very easy to integrate into the device. This means it does not require complicated installation tools and long installation times.
Main Application
Gas meter, IOT device, Water meter, Automatic instrumentation equipment, Flow meter
Security Devices, Telemetry device, Military Devices, Ocean Equipment, GPS module, Heat meter

WARNING Safety
• Do not remove the cells from their original packing before use.
• Do not store the cells in bulk in order to avoid accidental short circuit.
• Do not disassemble.
• Do not recharge, crush, disassemble, heat above 212°F(100°C) or incinerate.
• Keep battery out of reach of children and in original package until ready to use.
• Dispose of used batteries promptly.
Why choose us?
- We have a dedicated customer service team to answer questions and provide support for our Li-SO2Cl2 Battery Bobbin Type products.
- We strive to become an industry standard setter, build standards into the company's core competitiveness, and improve the quality of 3.9V Lithium Battery DX34615.
- We have built a strong relationship with our customers through our commitment to top-quality Li-SO2Cl2 Battery Bobbin Type products and excellent services.
- Loyalty to the company, loyalty to the cause, loyalty to the team, loyalty to ourselves is our corporate culture.
- We have a strict quality inspection process to ensure the best quality for each Li-SO2Cl2 Battery Bobbin Type product.
- We are based on the purpose of seeking benefits from management, promoting development through management, and promoting the overall sound development of the company.
- We have extensive experience in providing Li-SO2Cl2 Battery Bobbin Type products to a wide range of industries.
- Since our company was established, we have been serving our customers with the concept of "innovation, hard work, harmony and win-win", focusing on business reputation, insisting on scientific and technological innovation, and taking social responsibility as our responsibility.
- Our Li-SO2Cl2 Battery Bobbin Type products are available in different sizes and capacities to meet various customer needs.
- We will actively develop overseas business on the basis of original trade. We are looking forward to win-win cooperation with you.
