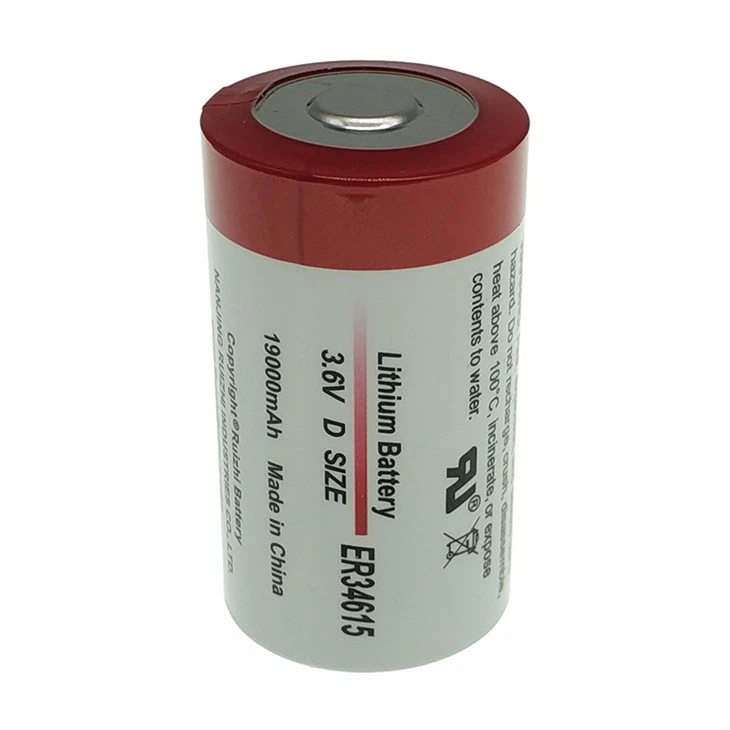

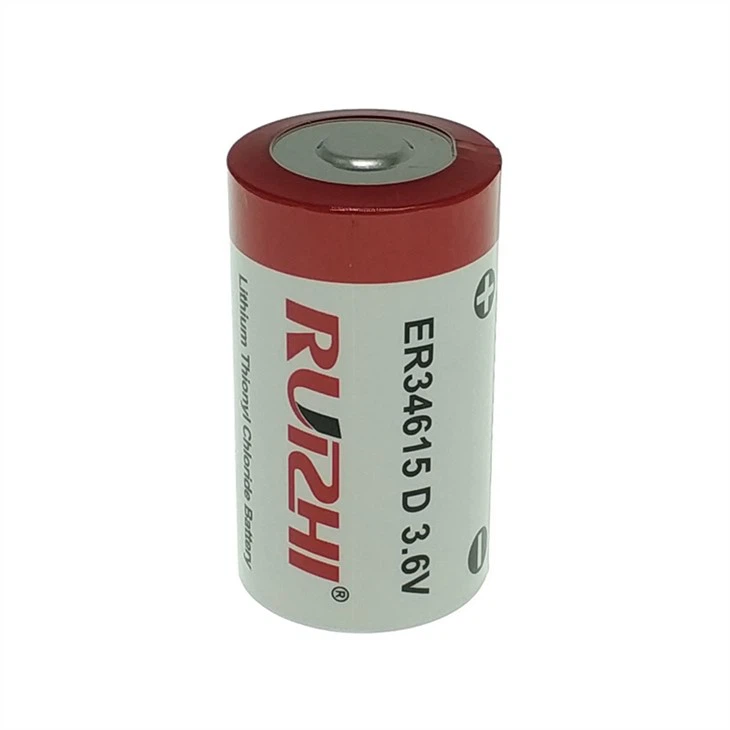

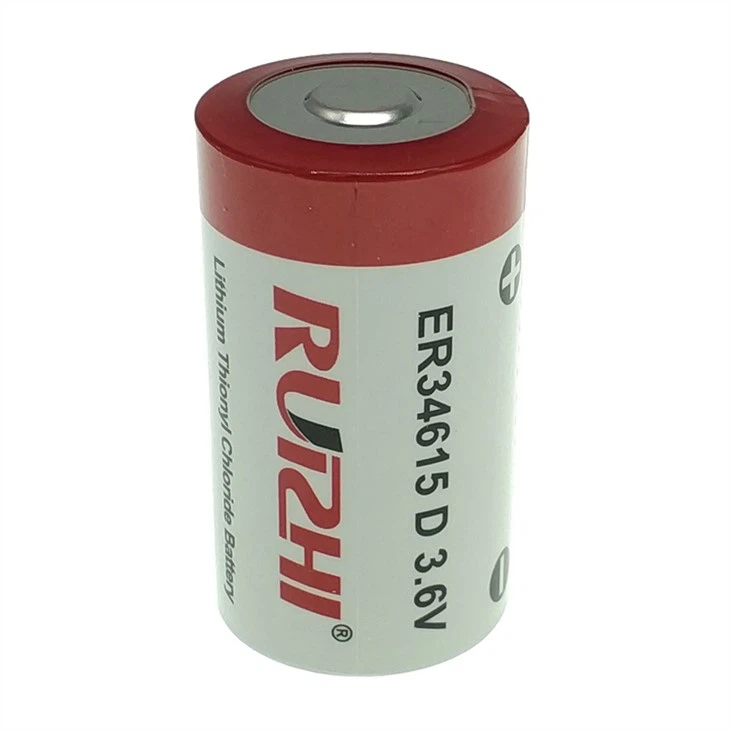

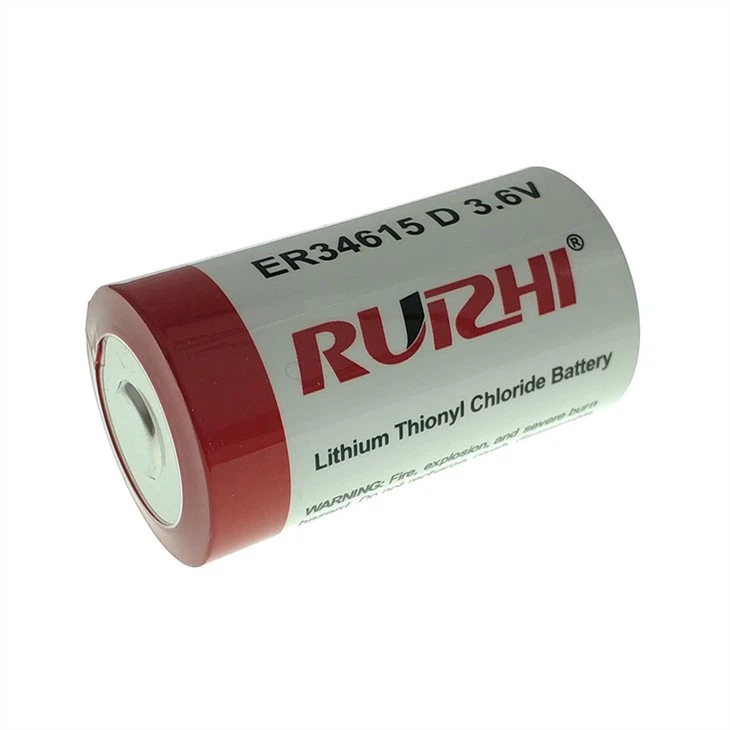

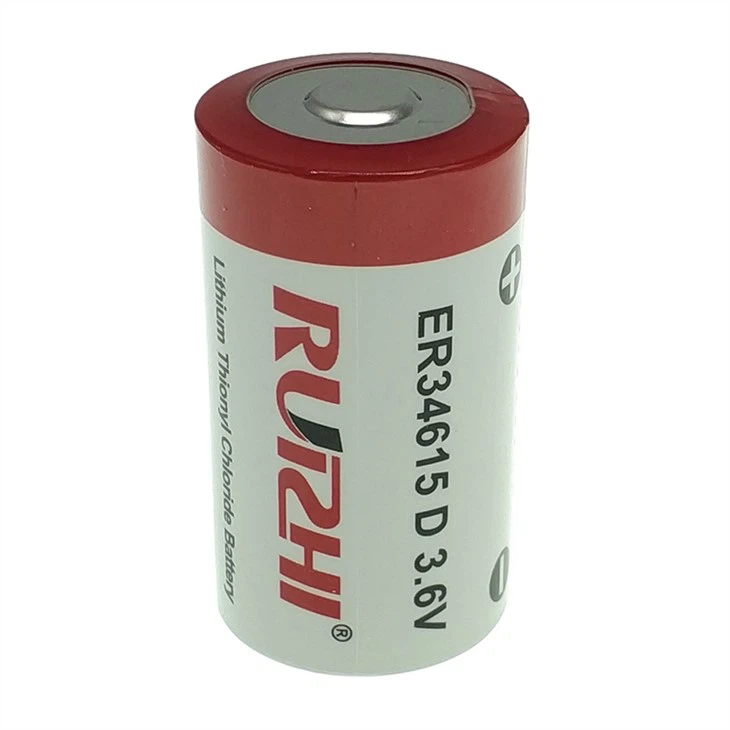

Lithium Battery ER34615
Model: ER34615
Nominal voltage: 3.6V
Weight: Approx. 107g
Storage temperature: Max. 30℃
Shape: D
Description
Introduction
The raw materials used in Lithium Battery ER34615 is lithium atoms, which have high voltage stability, and can work effectively at a wide range of temperature. It has better performance characteristics than ordinary batteries. Secondly, its power density density and high energy storage density. Secondly, its long service life can be used for 3-5 years, and it will decrease as the environmental temperature rises. What's more, our self -discharge rate is very low and almost does not consume energy. There is also a very high temperature performance, which can work normally within the range of -55 ° C to+85 ° C. Finally, our products are widely used in various fields, such as military industry, medical care, security monitoring, and the Internet of Things. It can be used to provide stable and reliable power support for portable medical instruments, electronic locks, smart water meters and other equipment.
Advantage
This is a high-quality battery with obvious advantages. Firstly, this type of battery has a high energy density, which means it can provide long-term power supply, thereby reducing the number of battery replacements. This makes this type of battery very suitable for high power consumption applications, such as long-term running measuring instruments, wireless sensors, etc. Secondly, The Lithium Battery ER34615 also has a long service life due to its low self discharge rate. This advantage means that even if the battery is not used for a long time, it can maintain a high level of power and provide sufficient power when needed. Meanwhile, due to its good stability, this type of battery can not only operate safely in extreme high and low temperature environments, but also withstand significant vibrations and impacts. More importantly, our product also has the characteristics of small size, light weight, and easy portability, which makes it very suitable for some portable and remote devices. For example, GPS devices, drones, and intelligent electronic devices used outdoors all require the use of portable batteries to provide sufficient energy. Finally, this is a very advanced battery that has advantages such as high energy density, long lifespan, high stability, and vibration resistance, making it suitable for various applications.
Electrical Characteristics
Model | ER34615 |
Nominal voltage | 3.6V |
Nominal capacity | 19000mAh (at 2mA +20°C 2.0V cut off. The capacity restored by the cell varies according to current drain, temperature and cut off) |
Max.continuous current | 230mA |
Max. pulse current | 400mA Typically up to 400 mA (400 mA/0.1 second pulses, drained every 2 mn at +20 from undischarged cells with 10μA basecurrent, yield voltage readings above 3.0) |
Operating temperature range | -60℃~+85℃ |
Weight | Approx. 107g |
Storage temperature | Max. 30℃ |
Shape | D |
Dimension(max.) | 34.0*61.5mm(Diameter*Height) |
Battery type | Bobbin Type |
Electrolyte/Chemistry | Lithium Thionyl Chloride(Li-SOCl2) |
Brand | Ruizhi, Beleader, OEM acceptable |
Equivalent | LS33600; TL-5930; TL2300; TL4930; TL5930; LS-33600; LS-33600C; SL-780; SB-D01; XL-200F, XL-205F;ER20; ER32L615. |
Certification
Compliance with the European directive CE & RoHS
MSDS, UN38.3 Report, ISO9000

Why choose us?
- We provide technical support and assistance to ensure our Li-SOCl2 Battery Bobbin Type products are used correctly and safely.
- We attach great importance to the accumulation and progress of technology, and continue to innovate Lithium Battery ER34615 that adapt to the development of the times.
- Our Li-SOCl2 Battery Bobbin Type products are made in-house to ensure quality and control over the production process.
- Our company will combine theory with practice for technological innovation and Lithium Battery ER34615 update.
- We offer competitive pricing for bulk orders of our Li-SOCl2 Battery Bobbin Type products.
- The company tracks the development trend of various products and technologies, and develops its own products with keen vision and bold ideas.
- We offer competitive pricing for our Li-SOCl2 Battery Bobbin Type products without sacrificing quality.
- We strive for continuously improvement with the goal of providing better quality products at competitive prices to meets the demands of this growing market. Please feel free to contract us for further information.
- We are constantly innovating and improving our Li-SOCl2 Battery Bobbin Type products to meet the evolving needs of our customers.
- The company continues to grow and develop and gradually mature to achieve leapfrog development.
Hot Tags: lithium battery er34615, China lithium battery er34615 manufacturers, suppliers, Meter PLC memory battery, Home security system battery, Utility metering battery, PC real-time clocks battery, LS14250 1 2 AA Size, ER14250 1200mah 3.6v Customized connectors
