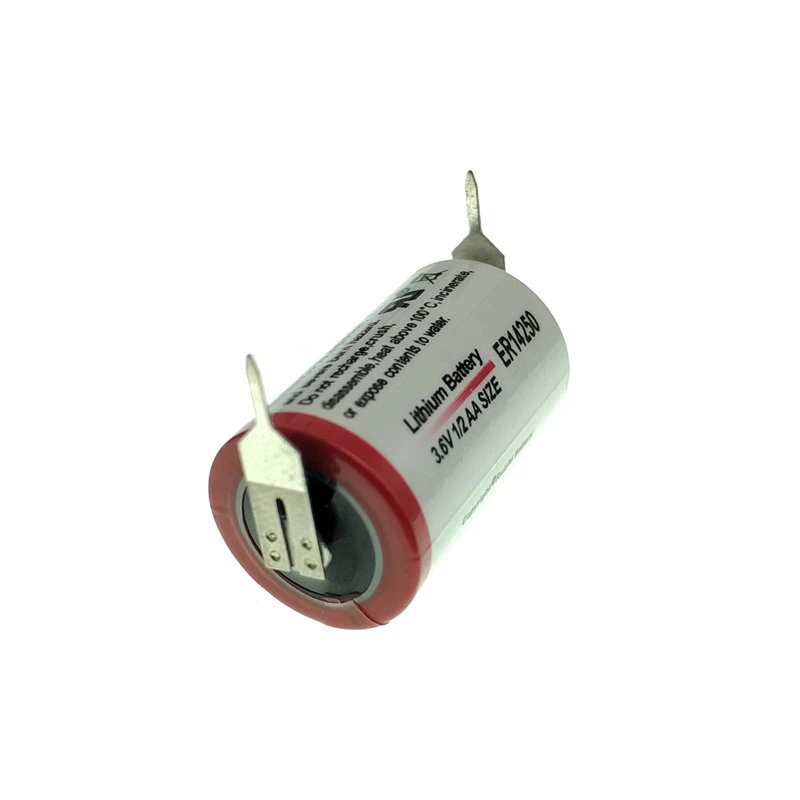

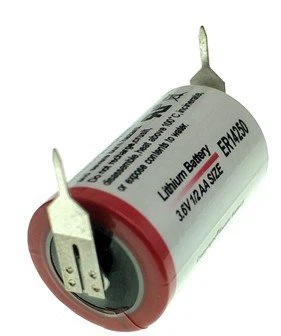

Lithium Battery ER14250 with 2PT
Model: ER14250-2PT
Nominal voltage: 3.6V
Weight: Approx. 11g
Storage temperature: Max. 30℃
Shape: 1/2AA
Description
Introduction
This is a high-performance battery commonly used in various electronic devices. It offers superior functionality and reliability to meet the ever-increasing demands of the modern world. Known for their superior energy density, this lithium battery ensures long periods of use without frequent recharging. With a capacity of 1200mAh, it can power devices for a long time, making it ideal for applications such as remote controls, medical equipment, and security systems. Second, Lithium Battery ER14250 with 2PT exhibit exceptional stability and superior performance even under extreme conditions. Its wide operating temperature range allows it to operate efficiently at high and low temperatures, making it suitable for applications where other batteries may struggle. When it comes to batteries, safety is the number one concern, and this lithium battery excels in that regard as well. It is equipped with an advanced protection system to prevent overcharging, overdischarging and short circuit. This ensures the longevity of the battery and the safety of the equipment it powers. Finally, we deliver exceptional performance, reliability and security. Its high energy density, wide operating temperature range and advanced protection system make it the first choice for various electronic applications.
Advantage
The Lithium Battery ER14250 with 2PT offer numerous benefits that make them the first choice for a wide variety of applications. First, the battery has excellent performance and longevity. Compared with other traditional batteries, it has a higher energy density and can effectively power devices for a long time. Whether it is medical instruments, industrial equipment or household appliances, it can provide reliable and durable power supply without frequent replacement. In addition, this lithium battery is lightweight and compact, making it very portable. Its small size allows it to fit seamlessly into compact devices and gadgets. Whether it's a smart card, sensor, or electricity meter, we can easily fit into a variety of small applications, offering convenience and versatility to the user. Finally, another notable advantage is its excellent temperature stability. It operates optimally even in extreme temperatures from -40°C to 85°C. This superior feature ensures consistent performance and reliability, enhancing the battery's usability in diverse industries and environments.
Electrical Characteristics
Model | ER14250-2PT |
Nominal voltage | 3.6V |
Nominal capacity | 1200mAh(Conditions: 0.5mA,+20°C, end voltage 2.0V) |
Notes | Battery capacity will be different according to the discharge current, environment temp. and end voltage. |
Max. continuous current | 25mA (+20°C Capacity will be 50% as per nominal capacity, end voltage 2.0V. Can provide more higher current.) |
Max. pulse current | 50mA (discharge according to pulse characteristics frequency, continue time, temperature, battery state(storage before use) and it is different as the lowest voltage accepted by device. |
Operating temperature range | -60℃~+85℃ |
Weight | Approx. 11g |
Storage temperature | Max. 30℃ |
Shape | 1/2AA |
Dimension(max.) | 14.5*25.4mm(Diameter*Height) |
Battery type | Bobbin Type |
Electrolyte/Chemistry | Lithium Thionyl Chloride(Li-SOCl2) |
Brand | Ruizhi, Beleader, OEM acceptable |
Equivalent
UHE-ER14250, UHE-ER14250-X, XL-050F, 1770-XZ, 3B26, 418-0076, 60-0576-100, 6135-99-770-2535, 6ES5-980-0MA11, 6ES59800MA11, 742-0011, 922-1262, ER3, ER3S, ER4, LS14250, LS3, T04/41, T04/51, TL-2150, TL-2150/S, TL-2151, TL-5101, TL-5112, TL-5151, TL-5151S, TL2150, TL2151, TL5101, TL5112, TL5151, TL5151S, VL1/2AA
Certification
Compliance with the European directive CE & RoHS
MSDS, UN38.3 Report, ISO9000

WARNING Safety
• Do not remove the cells from their original packing before use
• Do not store the cells in bulk in order to avoid accidental short circuit.
• Do not disassemble
• Do not recharge.
• Do not solder directly in the cell.
• Do not mix new and used cells or cells from different origins
• Respect the polarities of the cell. Sentences on cell Fire, explosion, and severe burn hazard.
• Do not recharge, crush, disassemble, heat above 212°F(100°C) or incinerate.
• Keep battery out of reach of children and in original package until ready to use.
• Dispose of used batteries promptly
Why choose us?
- We provide comprehensive technical support to ensure proper use and maintenance of our Li-SOCl2 Battery Bobbin Type products.
- Welcome new and old customers to come, write to us to discuss business, sincerely cooperate, we will work with you to create a better future.
- Our professional team is dedicated to creating the best Li-SOCl2 Battery Bobbin Type products in the industry.
- We have an excellent R&D team in China, dedicated to the research of Lithium Battery ER14250 with 2PT.
- Our Li-SOCl2 Battery Bobbin Type products undergo rigorous testing to ensure maximum performance and safety.
- We are committed to be the leader in the industry, leading the development of the industry from a technical point of view and ranking first in the industry in terms of market share and profitability.
- We are both a supplier and manufacturer, which means we can offer the best prices.
- We actively improve the various insurance systems and do a good job in all basic insurance to safeguard the vital interests of employees.
- We take pride in delivering top-quality Li-SOCl2 Battery Bobbin Type products to our customers.
- With globalization as the direction, we are continuously improving our business capability, comprehensive strength and core competitiveness by adopting multiple business models.
Hot Tags: lithium battery er14250 with 2pt, China lithium battery er14250 with 2pt manufacturers, suppliers, ER14250, metering battery, bicycle sharing sensor battery, GPS system battery, Marine equipment battery, Heat meter battery
