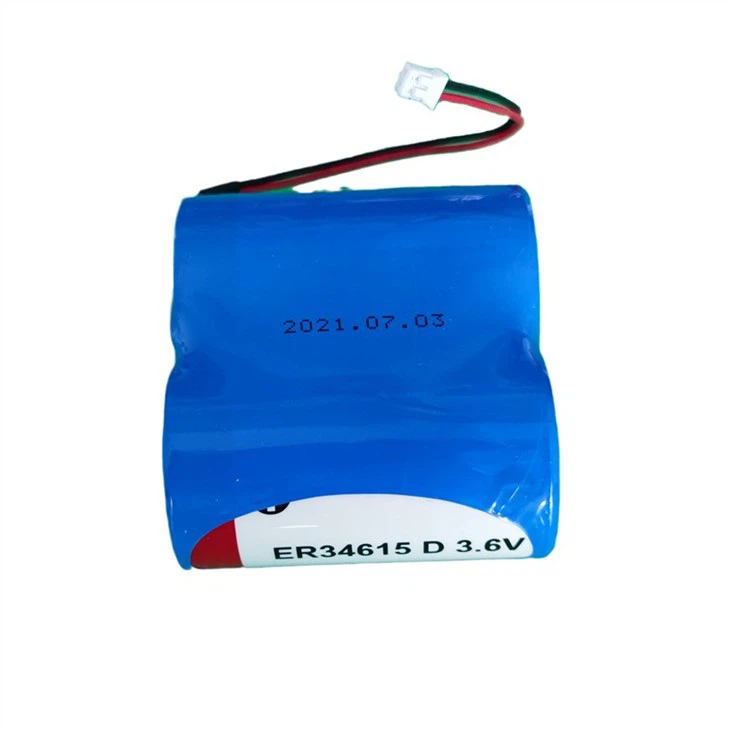

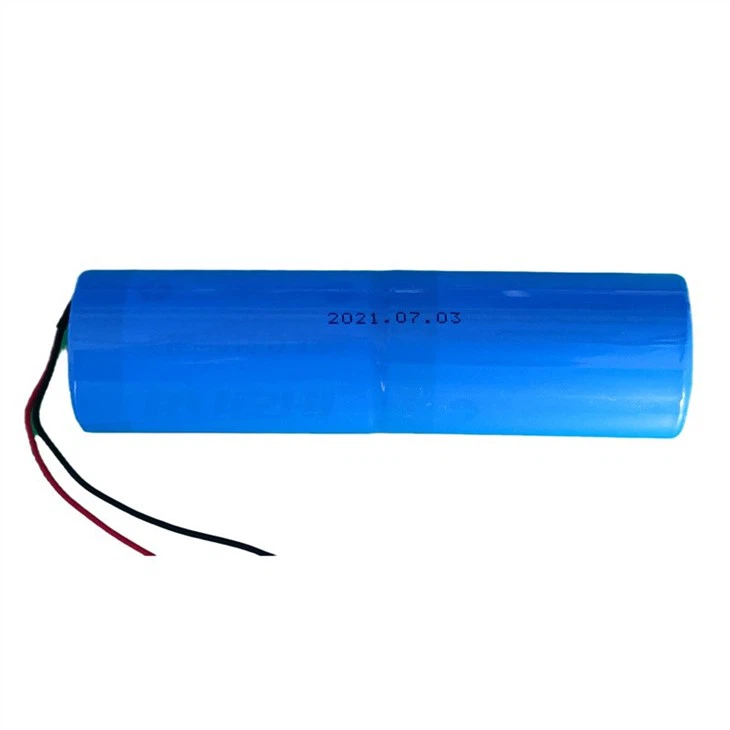

Lithium Battery Pack ER34165-2

Lithium battery pack ER34165-2 has high safety because it adopts a stainless steel sealed casing to provide comprehensive protection for the long shelf life and inherent safety of the equipment using the battery. A glass-to-metal seal is used to insulate the positive terminal, and a safety vent is also used on the screw-type negative terminal. As a product with high energy density and output power, this battery can provide longer running time and stronger power support for the device, and its capacity is 38000mAh. In addition, it does not contain heavy metals and pollutants, which is very in line with the concept of environmental protection. Since this battery adopts multiple seals such as stainless steel casing and metal seal, it is not easy to leak and does not require complicated maintenance. We can provide customers with a variety of customized services, welcome to buy!

Model: ER34615-2

Nominal voltage: 3.6V

Nominal capacity: 38000mAh （at 2mA +20°C 2.0V cut off. The capacity restored by the cell varies according to current drain, temperature and cut off）

Max.continuous current: 460mA

Max. pulse current: 800mA :

Operating temperature range: -60℃~+85℃

Weight: Approx. 214g

Storage temperature: Max. 30℃

Shape: D

Dimension(max.): 69.0*63.5mm(Diameter*Height)

Battery type: Bobbin Type

Electrolyte/Chemistry: Lithium Thionyl Chloride(Li-SOCl2)

Brand: Ruizhi, Beleader, OEM acceptable

Equivalent: LS33600; TL-5930; TL2300; TL4930; TL5930; LS-33600; LS-33600C; SL-780; SB-D01; XL-200F, XL-205F;ER20; ER32L615.

Compliance with the European directive CE & RoHS

MSDS, UN38.3 Report, ISO9000

1. High voltage: The open circuit voltage of this battery pack is 3.67V, and the working voltage is 3.60V, so it can supply energy for high-power equipment for a long time.

2. Wide operating temperature range: This lithium battery pack ER34165-2 can be discharged stably in the environment of -55°C to +85°C, so it is very suitable for applications in various extreme environments.

3. High energy density: This battery can exhibit the highest energy density among existing primary batteries, up to 650Wh/kg and 1280Wh/L.

4. Long service life: Due to the low self-discharge of Li/SOCl2 battery (less than 1% per year at 20°C), this battery can be used for a long time.

5. Excellent safety: This series of products have been approved by Underwriters Laboratories of the United States and regularly inspected, and meet the United Nations transportation test requirements.

AMR (Automated meter reading) , Gas Meter, GPS tracking, Emergency location transmitters beacons (ELTs, EPIRBs), Professional electronics, Military radio communication, Oil exploration, Automotive telemetry

•Do not remove the cells from their original packing before use

• Do not store the cells in bulk in order to avoid accidental short circuit.

• Do not disassemble

• Do not recharge.

• Do not solder directly in the cell.

• Do not mix new and used cells or cells from different origins

• Respect the polarities of the cell. Sentences on cell Fire, explosion, and severe burn hazard.

• Do not recharge, crush, disassemble, heat above 212°F(100°C) or incinerate.

•Keep battery out of reach of children and in original package until ready to use.

•Dispose of used batteries promptly
