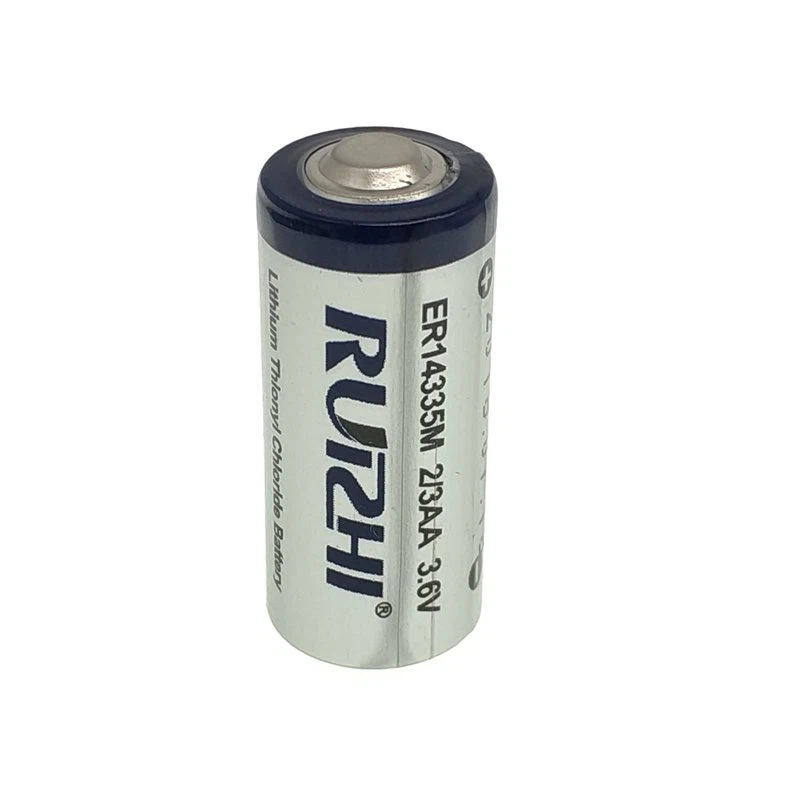

Lithium Battery ER14335M
video
Lithium Battery ER14335M

Lithium Battery ER14335M

Model: ER14335M
Nominal voltage: 3.6V
Weight: Approx. 14g
Storage temperature: Max. 30℃
Shape: AA

Description

Lithium battery ER14335M has higher energy density than other batteries of the same size, reaching more than 650Wh/Kg, so it can store more energy per unit volume, thus extending the running time and life. It is capable of operating in a wide temperature range, from as low as -60°C to as high as +85°C, which makes it suitable for use in harsh environments such as extreme cold, high pressure, high temperature, etc. In addition, its self-discharge rate is less than 1% per year, so it can be stored for a long time without recharging or replacing. The battery's voltage up to 3.6V and compact size make it ideal for applications that require high output voltage but have limited installation space, such as meter sensors, GPS sensors. Whether it's industrial equipment, medical equipment, or consumer electronics, our lithium batteries are sure to meet your needs as high-performance batteries that are reliable, durable, and long-lasting. Welcome customers in need to come to discuss cooperation!


Electrical Characteristics


Model

ER14335M

Nominal voltage

3.6V

Nominal capacity

1300mAh ( At 1.0 mA, +25 C, 2.0V cut off. The capacity restored by the cell varies according to current drain, temperature and cut off voltage )

Max. continuous current

200mA (+20°C Capacity will be 50% as per nominal capacity, end voltage 2.0V. Can provide more higher current.)

Max. pulse current

500mA (discharge according to pulse characteristics frequency, continue time, temperature, battery state(storage before use) and it is different as the lowest voltage accepted by device.

Operating temperature range

-60℃~+85℃

Weight

Approx. 14g

Storage temperature

Max. 30℃

Shape

AA

Dimension(max.)

14.5*33.5mm(Diameter*Height)

Battery type

Spiral Type

Electrolyte/Chemistry

Lithium Thionyl Chloride(Li-SOCl2)

Brand

Ruizhi, Beleader, OEM acceptable


Key Features


1. Lithium battery ER14335M has the characteristics of long storage life, and its nominal capacity can reach 1300mah, so it is very suitable for high-power equipment with idle needs.

2. The battery has a wide operating temperature range and can provide a stable operating voltage and load voltage platform. Therefore, it is able to maintain stable performance under various harsh conditions.

3. Using stainless steel material, laser and airtight glass metal welding seal, this battery has better stability in corrosive and humid environment than other types of batteries.

4. This battery has a long service life and can be used for more than 5 years. In some special applications, it can even be used for more than 10 years (depending on the specific job requirements).

5. The energy density of this battery is as high as 650Wh/Kg, about 3-10 times that of other series of lithium batteries, so it can output electric energy with higher power than batteries of the same volume.


Main Application


Meter sensor, GPS Sensor, Ammeter Power Equipments, security system, Smoke detector battery


ER14335M(001)


WARNING Safety


1. It is strictly prohibited to short circuit and charge the battery.

2. User are strictly prohibited to remove the battery by themselves.

3. Over-discharge, extrusion and incineration of the battery are strictly prohibited.

4. Do not use or heat outside the permitted temperature range.

5. It is strictly forbidden to mix different batteries in series and parallel.
