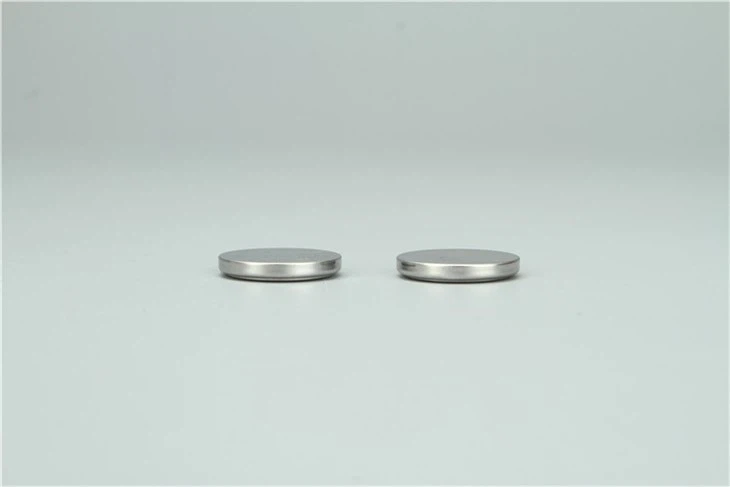

Lithium Battery CR2032

Lithium Battery CR2032

Model: CR2032
Nominal voltage: 3.0V
Max. continuous current: 3mA
Max. pulse current: 60mA
Operating temperature range: -40℃~+60℃

Description

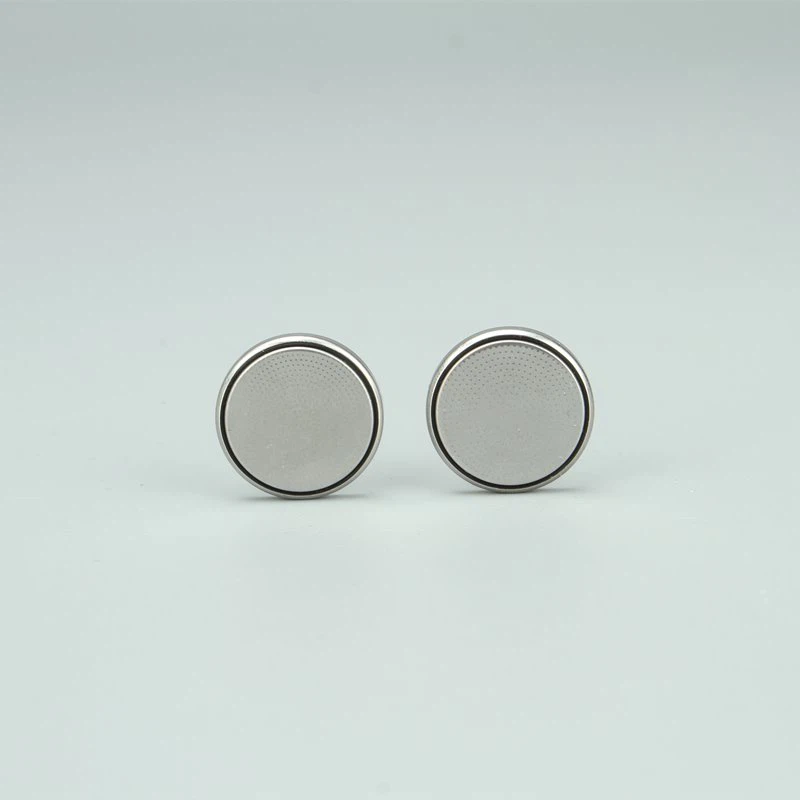

Lithium battery CR2032 is designed in a button shape, small and light, and can be carried around, so it is especially suitable for installation in a PCB. It has excellent stability because it can work stably in the temperature range of -40℃~+60℃. This means that it will not experience voltage instability due to changes in the temperature and humidity of the external environment, ensuring the accuracy of the instrument. Due to the use of lithium manganese dioxide (Li-MnO2) as the electrolyte material, this battery is lead-free, cadmium-free, and mercury-free, and will not pollute the environment. It has a high capacity of 230mah, so it can provide long-lasting power to your electronic devices such as watches, thermometers, etc. The small size, portability and long life of this button battery also make it an important power supply component in a large number of electronic devices, such as remote controls, watches, electronic keys, etc. Just in need? Order now!


Electrical Characteristics


Model

CR2032

Nominal voltage

3.0V

Nominal capacity

230mAh (Standard discharge with load 15kΩ)

Max. continuous current

3mA

Max. pulse current

60mA

Operating temperature range

-40℃~+60℃

Self-discharge rate

≤5%(Stored for 12 months at normal temperature and humidity)

Weight

Approx. 3g

Storage temperature

Max. 30℃

Dimension(max.)

20.0*3.2mm(Diameter*Height)

Electrolyte/Chemistry

Lithium Manganese Dioxide(Li-MnO2)

Brand

Ruizhi, Beleader, OEM acceptable

Equivalent

DL2032, BR2032, CR2032E, ECR2032, KL2032, L2032


Certification


Compliance with the European directive CE & RoHS

UN38.3 Report, ISO9000


Key Features


1. Long-lasting: This lithium battery uses lithium manganese dioxide as the electrolyte and has a long service life, which means you don't need to replace it often.

2. High Capacity: This battery offers a capacity of 230mah in a small size, which makes it ideal for small devices that require a compact battery to function.

3. Wide temperature range: CR2032 lithium battery can work at -40℃~+60℃, suitable for various extreme environments.

4. Leak-proof: This battery uses a metal case and is equipped with a professional leak-proof design, so it will not leak.

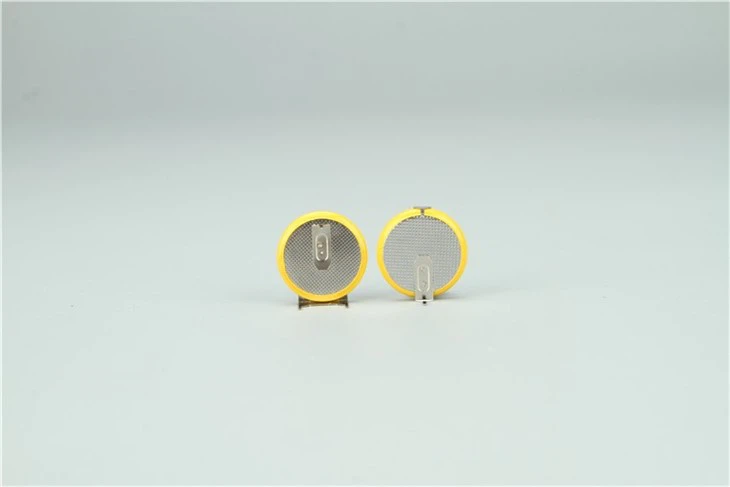

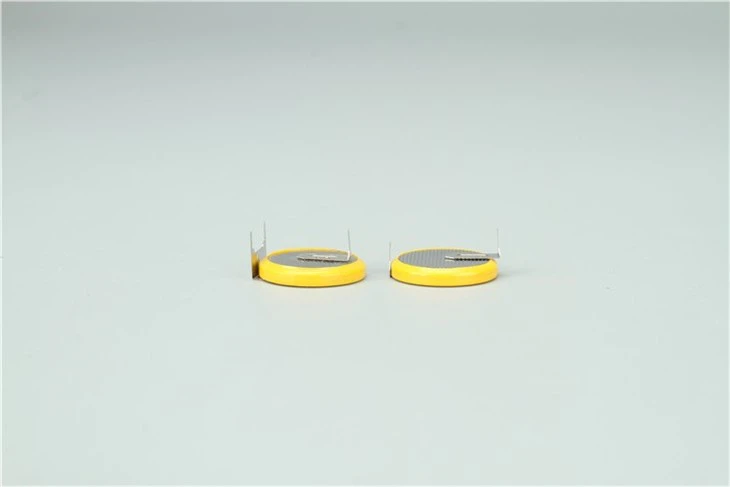

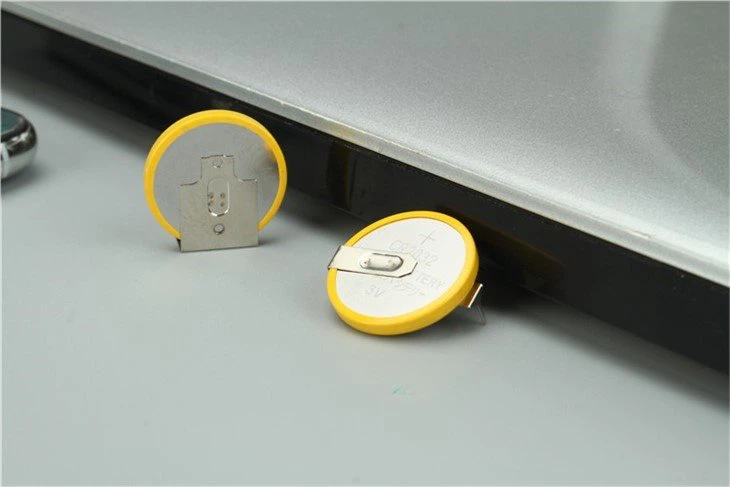

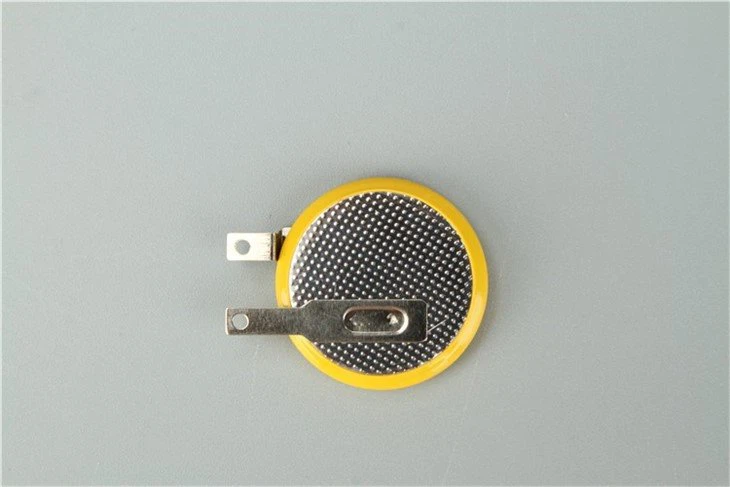

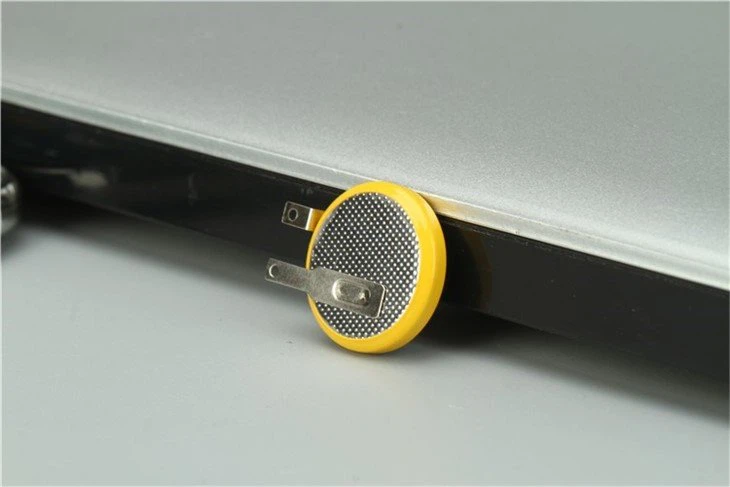

5. Easy to install: This lithium battery CR2032 is very small in size, like a button, and it is equipped with PCB mounting pins, which can effectively simplify the installation process.


Main Application


Electric toy, calculator, laser pointer, computer motherboard, e-dictionary, watch, electronic scale, cardiacpacemaker, electronic hearing aid, counter, clock, watch, game, digital camera, camcorder, PDA, MP3 player, remote control, electronic instrument, voice recorder, blood glucose meter, cholesterol testing meter, LED light and other electronic appliances.


WARNING Safety


• Do not remove the cells from their original packing before use

• Do not store the cells in bulk in order to avoid accidental short circuit.

• Do not disassemble

• Do not recharge.

• Do not solder directly in the cell.

• Do not mix new and used cells or cells from different origins

• Respect the polarities of the cell. Sentences on cell Fire, explosion, and severe burn hazard.

• Do not crush, disassemble, heat above 212°F(100°C) or incinerate.

• Keep battery out of reach of children and in original package until ready to use.

• Dispose of used batteries promptly




Why choose us?

  • Our manufacturing processes utilize the latest technology to ensure consistent quality and reliability.
  • The effect of our innovation depends on our technology accumulation and talent accumulation, as well as our culture accumulation.
  • With years of experience in the industry, we have established a reputation for reliable and efficient service.
  • We are committed to providing our customers with safe and innovative products, services and solutions to achieve profitable growth.
  • Our Li-MnO2 button cell batteries offer excellent performance even in extreme temperatures.
  • Our social responsibility concept is finally implemented in the practice of scientific and technological innovation, energy saving and environmental protection, and employee care.
  • As both a supplier and manufacturer, we offer competitive pricing.
  • We would like to take this opportunity to establish long-term business relationships with clients from all over the world.
  • Our Li-MnO2 batteries are among the best in the industry, offering exceptional performance and longevity.
  • Our company is a professional manufacturer of Lithium Battery CR2032, our company produces a wide variety of these.

Hot Tags: lithium battery cr2032, China lithium battery cr2032 manufacturers, suppliers, digital watch battery, Li MnO2 Button Cell, electronic instrument battery, 3 0V Li MnO2 Battery, calculator battery, electric toy battery
